HEL Performance Braided Brake Lines - Audi S5 4.2 FSi 07-

HEL Performance Braided Brake Lines - Audi S5 4.2 FSi 07-

Skip to product information
1 of 2

SKU: AUD-4-351
Regular price $220.00 AUD
Regular price Sale price $220.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

Product Description:

This kit is confirmed to fit the following vehicles:

  • 2007- Audi S5 4.2 FSi

Vehicle Specific Notes:

  • 4 Line Braided brake line kit
  • Standard layout- replaces the OEM factory rubber brake hoses

Why Install Braided Brake Lines?

Braided Brake line kits offer a simply and effective method to eliminate that 'spongy' feeling often found with rubber hoses under extreme braking conditions - the time when performance is needed the most. By replacing the original rubber hoses with our complete system you will remove this sponginess and your braking will deliver new levels of precision. On top of the performance benefit, HEL Performance braided brake lines will last significantly longer than OEM rubber-type hoses and offer a lifetime warranty to back it up. Additionally, HEL Performance brake lines are available in a number of colours and options to add a subtle yet noticeable improvement to the looks of your car.

Why Choose HEL Performance?

HEL Performance is the only UK company of its kind to design and manufacture its entire range of mainline stainless steel high-performance brake line fittings in-house, using Star Sliding Head CNC machines. HEL Performance brake lines are assembled with a PTFE inner tube, wrapped with a 304 Stainless Steel braided which is then protected with a PVC outer layer to offer additional protecting, easy cleaning and eye-catching looks. HEL Performance were the first to offer this PVC coating instead of a traditional heatshrink finish. Don't risk using inferior brake lines when you can trust us to improve braking reliability and performance - We use stainless steel in our lines and our fittings. Most competitors use zinc plated fittings which are at risk from corrosion.

HEL Performance brake lines are a like for like replacement for the standard flexible brake hoses on your vehicle unless specified otherwise. Should you find a kit isn't properly suited to your vehicle we will happily work with you to modify or replace your hoses.

Why Choose HEL Auto?

HEL Auto specialises in car and 4x4 applications, carrying out research, development and design work for the Australian market. HEL Auto also offers a full complement of bespoke services individually catered to each customers needs. Our services range from project conception and design, through to installation and testing. Whether it’s OEM replacement or a fully custom setup you need - HEL Performance Autosales is a helishly good choice!.

HEL Auto is a distributor of HEL Performance products and is directly partnered with HEL Performance Australia - the only company in Australia certified to assemble ADR approved HEL Performance products in house.

HEL Performance Certification:

HEL Performance braided lines meet and exceed regulatory requirements all over the world, making them road legal anywhere. To be road legal, hoses must comply with the strict criteria and requirements of FMVSS-106. Set out by the Federal Motor Vehicle Safety Standards, these criteria and requirements are used by:

  • ADR (Australia)
  • DOT (United States of America)
  • NHTSA (United States of America)
  • ABE KBA (Germany)
  • LTSA (New Zealand)
  • IDR (Israel)
  • MOT (Europe)
HEL Performance products are fully certified and registered with all the above organisations. That means you can use them anywhere in the world with utmost confidence.

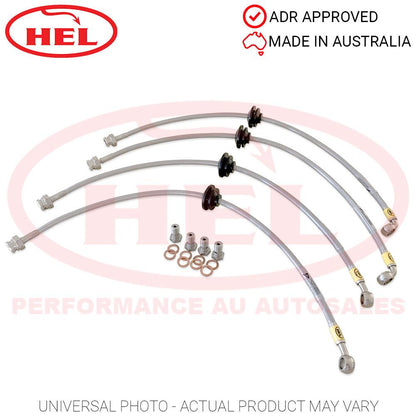

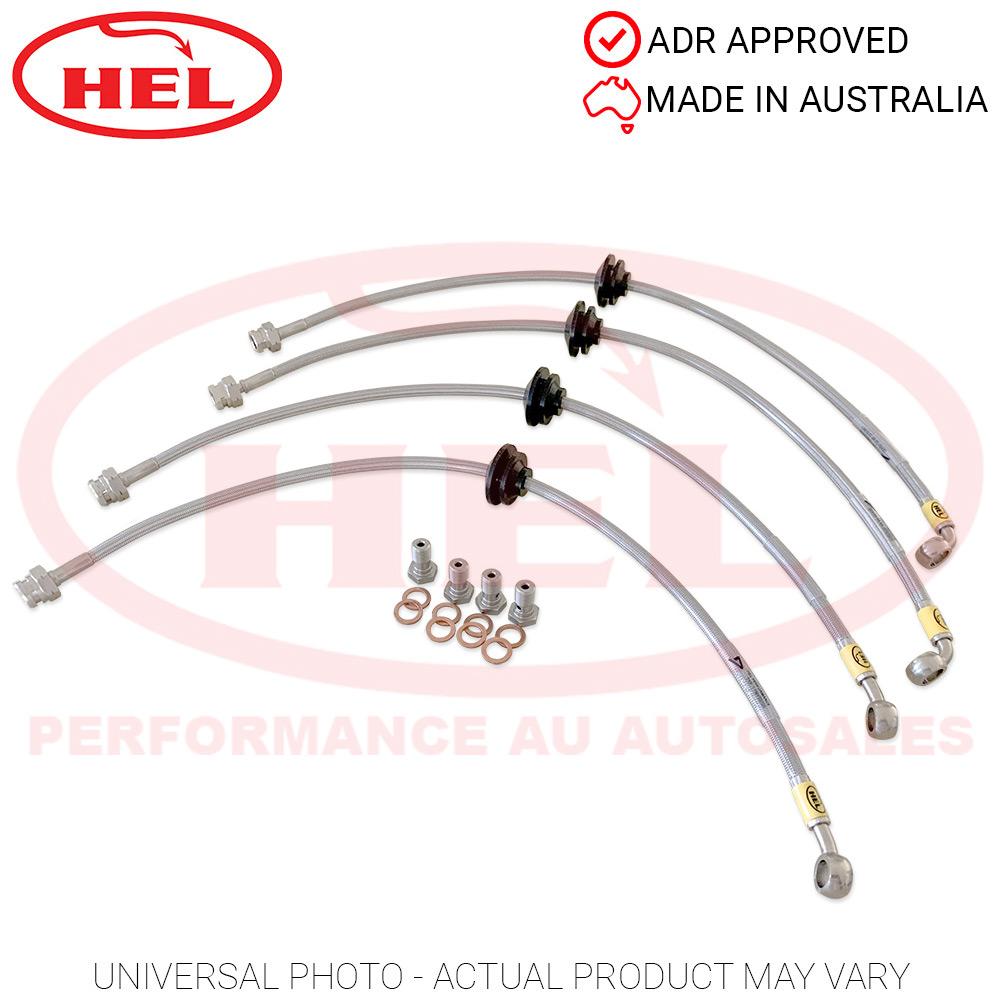

What's Included?

HEL Performance Brake Line kits include the following components:

  • Stainless steel braided brake lines (see above for quantity)
  • ADR Certification Number Tags (one per line)
  • Natural plain stainless steel banjo bolts (if the fittings require them)
  • Copper crush washers (if the fittings require them)
  • Instruction Leaflet with Stickers
Depending on the vehicle, additional hardware may be included such as mounting blocks or brackets should they be required for installation. For most vehicles the original hardware can be used.

Specifications:

  • Line inner material: PTFE
  • Line outer material: Stainless steel (303/304) and protective PVC cover
  • Fittings material: Stainless steel (303/304)
  • Temperature range: -70°C to 260°C (-94°F to 500°F)
  • Inside diameter: 3.5mm (0.138")
  • Outside diameter: 7.5mm (0.295")
  • Maximum working pressure: 290 Bar (4206 PSI)
  • Burst pressure: 870 Bar (12618 PSI)
  • Minimum bend radius: 38mm (1.496")

Line Colour Options

HEL Performance braided hoses are completely customisable! You can select from a range of colours for the PVC outer layer and even select different coloured "HEL" logo tags which are featured on every HEL Performance hose. Additionally, you can add a heat shrink to the end of each line to further improve the appearance as well as adding an additional layer of protection.

HEL Performance Brake and Clutch lines are supplied by default with a clear PVC outer layer which allows you to see the brilliant Stainless Steel braiding underneath. Alternate custom colours are available for an additional charge, however if stock levels are low of the default colour we may need to alter the line colour to a backup "default" option which will not be charged. Colour options, including colours used for a backup default option, are listed below as well as tag colour and heatshrink options. Custom coloured hose, heat-shrink and tag colour options are charged per line.

Brake Hose Colours
  • Transparent/Clear: Default Option
  • Carbon: (backup default 1) +$3.50 per line
  • Solid Black: (backup default 2)+$3.50 per line
  • Solid White: +$3.50 per line
  • Transparent Red: +$3.50 per line
  • Solid Red: +$3.50 per line
  • Solid Orange: +$3.50 per line
  • Solid Yellow: +$3.50 per line
  • Solid Gold: +$3.50 per line
  • Solid Kawasaki Green: +$3.50 per line
  • Transparent Blue: +$3.50 per line
  • Solid Blue:+$3.50 per line
  • Transparent Purple: +$3.50 per line
  • Solid Pink:+$3.50 per line
Tag Colours
  • Black: Default
  • Yellow: +$2.50 per line
  • White: +$2.50 per line
  • Red: +$2.50 per line
  • Blue: +$2.50 per line
  • Wasabi Green: +$2.50 per line
Heatshrink
  • No Heatshrink: Default
  • Heatshrink: +$6.50 per line

Shipping

HEL Auto assemble all kits to order which allows you to customise the kits with the options detailed above without any additonal delays. We offer different turnaround times and delivery options which are listed below. International shipping is available but must be quoted and processed manually. Please contact us and we will assist you.

Delivery Options
  • Standard Express Service - Despatched within 2-4 working days. Shipped with Express Shipping + Tracking
  • Economy Service - Despatched within 5-7 working days. Shipped with Regular Shipping + Tracking

Should the unlikely event occur where we are unable to meet the advertised timeframes one of our friendly staff will notify you as soon as possible.

Whilst we endeavour to assemble and dispatch orders as quickly as possible the above timeframes are sometimes affected by unforeseen circumstances out of our control. If you require your kit urgently to meet a specific date or deadline please contact us prior to purchase to we can ensure we meet your leadtime expectations and/or recommend the most suitable service.

Returns

If you expereience any issue with your kit or have question - please contact us. We value our customers and we're happy to provide expert help and assistance in order to provide a solution to any issue experieced. As we custom manufacture kits to order, we operate a strict no returns policy inline with ACCC guidelines. Returns are authorised only under the following circumstances:

  • There is a fault or error with the item supplied that we cannot rectify for you within a reasonable timeframe
  • The item supplied is not compatible with the application we specifically advertise it for
  • The item supplied differs substantially from our description or specifics we advertise

We regret that we cannot allow a return for reasons outside of our control such as:

  • Change of heart / circumstances or ordering error / mistake
  • Any fault caused by an installation error, misuse or other external factors beyond our control
  • A fault or error that is able to be rectitifed within a reasonable timeframe

For any questions or concerns please reach out to us and we will be happy to assist.
